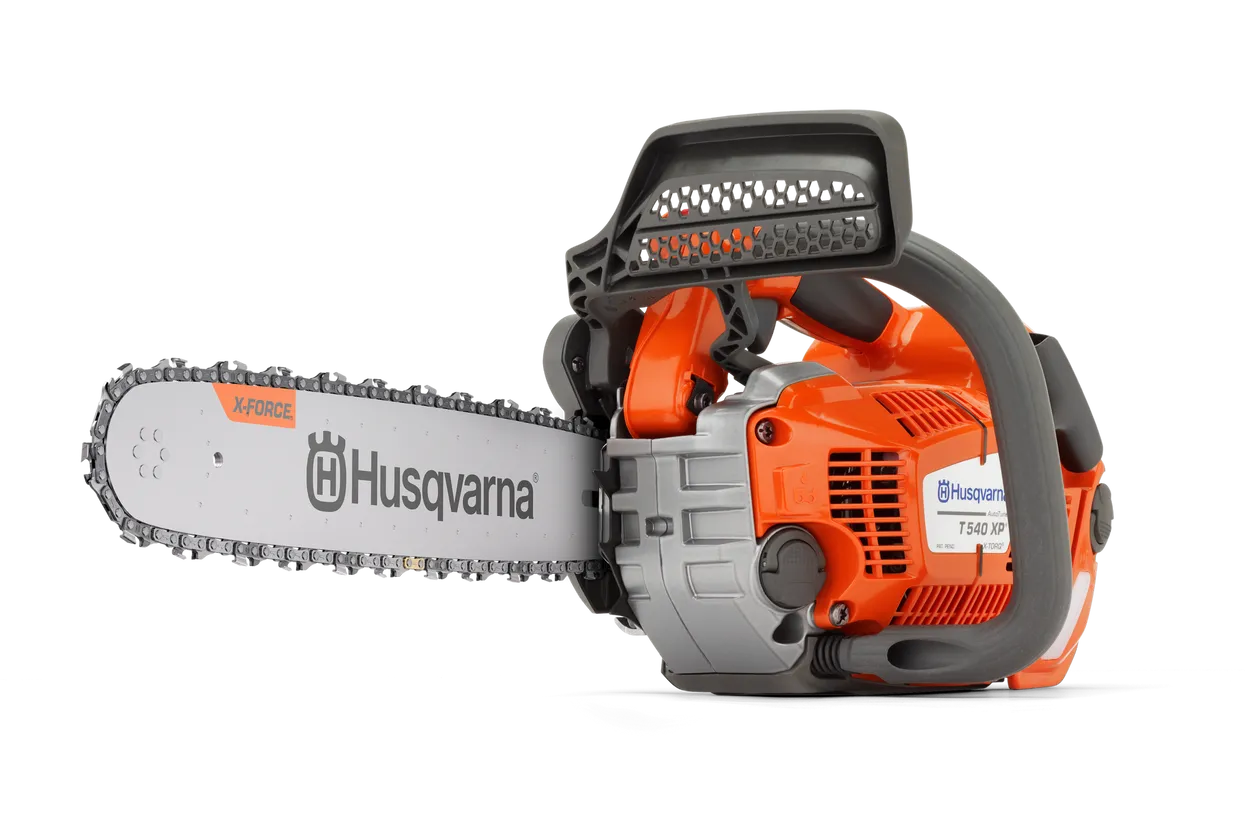

Powerful 38cc top-handle chainsaw for professional tree climbers
FEATURES
AutoTune
AutoTune gives optimal engine performance throughout automatic engine setting. No time spent on carburettor adjustments. It compensates for different fuels, altitude, humidity, temperature and clogged air filter.
Adjustable Oil Pump
Customize and control oil flow to meet any need
Individual grip size
The top handle grip size can be set in three alternative sizes, to perfectly fit your hand.
Belt eyelet
Makes it quick and easy to connect the saw to the climbing harness.
Quick-Release Air Filter
Easily remove and replace the filter after cleaning
Simple Starting
Stop switch automatically resets to ON so tool is ready for next use
Air Injection™ Technology
Centrifugal air cleaning system expels larger dust and debris particles before they reach the air filter to help improve engine life and provide longer run time between filter cleanings.
Retained bar nut
The retaining function prevents loosing the bar nut.
Side Chain Tensioning
Quickly and easily adjust the chain
Magnesium crankcase
Sturdily built crankcase withstands high rpms and tough professional use, ensuring a long service life.
Inertia-Activated Chain Brake
In case of a kickback, the effective inertia-activated chain brake immediately stops the chain to reduce the likelihood of injury.
SPECIFICATIONS
| Engine |
16" SN 3/8 mini" 1,3 mm S93G
SKU: 967 28 76‑16
|
14" SP21G SN
SKU: 970 48 40‑14
|
|---|---|---|
Chain speed at max power |
63.65 fts | 63.65 fts |
Cylinder displacement |
37.7 cm³ | 37.7 cm³ |
Power output1 |
2.4 hp | 2.4 hp |
Torque, max. |
1.83 Nm | 1.83 Nm |
Torque, max. at rpm |
140 rpm | 140 rpm |
Clutch engagement speed (±120) |
4,500 rpm | 4,500 rpm |
Electrode gap |
0.02 in | 0.02 in |
Idling speed |
3,000 rpm | 3,000 rpm |
Ignition module air gap |
0.01 in | 0.01 in |
Maximum power speed |
10,200 rpm | 10,200 rpm |
Oil pump capacity, max |
9 ml/min | 9 ml/min |
Oil pump capacity, min |
3 ml/min | 3 ml/min |
Oil pump type |
Adjustable flow | Adjustable flow |
Spark Plug |
NGK CMR6H | NGK CMR6H |
| Equipment |
16" SN 3/8 mini" 1,3 mm S93G
SKU: 967 28 76‑16
|
14" SP21G SN
SKU: 970 48 40‑14
|
|---|---|---|
Recommended bar length, min |
12 in | 12 in |
Pitch |
3/8" mini | .325" mini |
Recommended bar length, max |
16 in | 16 in |
Chain type |
S93G | SP21G |
Bar length |
40 cm | 35 cm |
Bar length (inch) |
16 in | 14 in |
Sprocket type |
Spur 6 | Spur 6 |
Gauge |
1.3 mm | 1.1 mm |
| Dimensions |
16" SN 3/8 mini" 1,3 mm S93G
SKU: 967 28 76‑16
|
14" SP21G SN
SKU: 970 48 40‑14
|
|---|---|---|
Weight (excl. cutting equipment) |
8.6 lbs | 8.6 lbs |
| Sound and noise |
16" SN 3/8 mini" 1,3 mm S93G
SKU: 967 28 76‑16
|
14" SP21G SN
SKU: 970 48 40‑14
|
|---|---|---|
Sound pressure level at operators ear (LpA) |
104 dB(A) | 104 dB(A) |
Sound power level, guaranteed (LWA) |
116 dB(A) | 116 dB(A) |
Sound power level, measured |
114 dB(A) | 114 dB(A) |
| Vibration |
16" SN 3/8 mini" 1,3 mm S93G
SKU: 967 28 76‑16
|
14" SP21G SN
SKU: 970 48 40‑14
|
|---|---|---|
Equivalent vibration level (ahv, eq) rear handle |
4.2 m/s² | 4.2 m/s² |
Equivalent vibration level (ahv, eq) front handle |
3.5 m/s² | 3.5 m/s² |
| Lubricant |
16" SN 3/8 mini" 1,3 mm S93G
SKU: 967 28 76‑16
|
14" SP21G SN
SKU: 970 48 40‑14
|
|---|---|---|
Oil tank volume |
0.42 US pint | 0.42 US pint |
Lubricant type (Engine) |
Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 |
| Emission |
16" SN 3/8 mini" 1,3 mm S93G
SKU: 967 28 76‑16
|
14" SP21G SN
SKU: 970 48 40‑14
|
|---|---|---|
Exhaust emissions (CO₂ EU V)2 |
968 g/kWh | 968 g/kWh |
